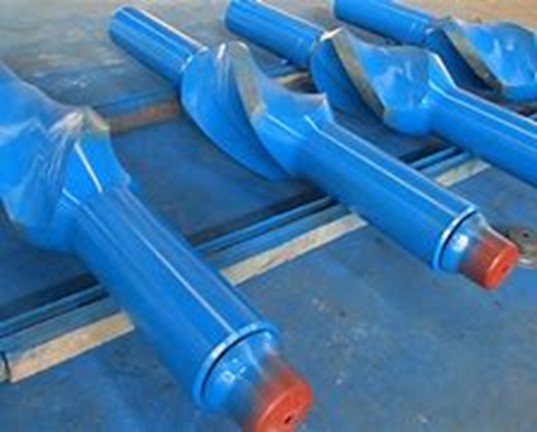

The drill pipe straightening tool is an essential tool in oil drilling operations, primarily used to correct the bending or deviation of the drill pipe during drilling. This ensures smoother drilling operations and addresses a range of issues that can arise from misalignment. By addressing these issues, the straightening tool improves operational efficiency, reduces costs, and extends the lifespan of equipment. This article will explain the basic working principle of the drill pipe straightening tool and discuss its critical role in drilling operations.
1. Issues in Drilling
In the oil drilling process, drill pipe bending or deviation is a common occurrence. Several factors, such as complex geological formations, uneven rock hardness, and operational errors, can cause the drill pipe to bend or deviate from its intended path. This misalignment can lead to the following problems:
- Deviation of the drill bit from the intended direction, preventing accurate penetration into the target formation.
- Reduced drilling speed, leading to longer drilling times and higher operational costs.
- Increased drill bit wear, shortening its lifespan and increasing maintenance and replacement frequency.
- Additional stress and friction on cables and other equipment, accelerating wear and tear.
To resolve these issues, the drill pipe straightening tool is used to mechanically correct the bending or deviation of the drill pipe, ensuring smooth and efficient drilling operations.
2. Basic Principle of the Drill Pipe Straightening Tool
The working principle of the drill pipe straightening tool involves a series of mechanical devices and control systems that allow for precise control and adjustment of the drill pipe. The core elements of the tool’s operation include:
2.1 Bending Measurement
The first task of the drill pipe straightening tool is to accurately measure the degree of bending of the drill pipe. Common measurement methods involve using sensors to measure the bending angle of the drill pipe at various points. Based on the working principle of the sensors, the measurement methods can be categorized as follows:
- Piezoelectric sensors: Measure strain in the drill pipe to calculate bending angles.
- Fiber optic sensors: Detect bending by measuring changes in light transmission.
- Resistive sensors: Determine deformation by measuring resistance changes in the drill pipe.
The data collected by these sensors is then fed into the control system for further processing and analysis.
2.2 Control System
The drill pipe straightening tool is equipped with a sophisticated control system that receives and processes bending data from the sensors in real-time. The control system typically consists of a computer and specialized software that calculates and adjusts the required straightening force based on predefined parameters. This ensures the drill pipe remains in the desired position during drilling.
2.3 Straightening Force
After obtaining the bending data, the control system calculates the necessary straightening force to correct the drill pipe’s misalignment. The straightening force can be generated through either hydraulic systems or mechanical devices.
2.3.1 Hydraulic System
In the hydraulic system, the straightening force is produced by controlling the flow of fluid. The hydraulic pump pushes fluid into the appropriate hydraulic cylinder, adjusting its direction and pressure to generate the required force for straightening the drill pipe.
2.3.2 Mechanical Devices
Mechanical devices use components like levers, gears, and pulleys to produce the straightening force. The design and arrangement of these components ensure that the applied force is precise enough to correct the drill pipe’s misalignment.
2.4 Feedback Control
The drill pipe straightening tool also includes a feedback control system that continuously monitors and adjusts the straightening force. This system consists of sensors, controllers, and actuators. The sensors measure the force applied to the drill pipe and transmit the data to the controller, which adjusts the force based on the feedback to achieve the desired alignment. The feedback control system ensures precise control of the drill pipe’s bending, guaranteeing the efficiency and safety of the drilling operation.
3. Applications of the Drill Pipe Straightening Tool
The drill pipe straightening tool plays a crucial role in oil drilling operations, providing several key benefits across various aspects of drilling:
3.1 Drill Bit Guidance
By controlling the degree of bending in the drill pipe, the straightening tool helps guide the drill bit accurately along its intended path, allowing it to drill into the target formation as planned. This is essential for oil and gas exploration, as it increases drilling accuracy and enhances the likelihood of successful exploration.
3.2 Improved Drilling Speed
The straightening tool reduces friction and resistance between the drill pipe and the wellbore, allowing the drill bit to move more smoothly through difficult or hard formations. This minimizes downtime, reduces unnecessary stops for repairs, and enhances overall drilling efficiency by increasing the drilling speed.
3.3 Equipment Protection
By effectively controlling the deviation of the drill pipe, the straightening tool also reduces the additional load on cables and other equipment. This reduction in friction and stress helps decrease the wear and tear on the equipment, extending its service life and reducing maintenance and replacement costs.
4. Conclusion
The drill pipe straightening tool operates by precisely measuring the drill pipe’s bending, applying the necessary straightening force, and using a feedback control system to continuously adjust the force in real-time. This ensures the drill pipe stays in an optimal position throughout the drilling process. The tool significantly improves drilling efficiency, reduces equipment wear, and enhances safety. As a result, the drill pipe straightening tool is an indispensable tool in modern oil drilling operations, greatly improving drilling accuracy, operational efficiency, and overall success.
