Drill pipes and drill collars are crucial tools in the oil industry. This article will introduce the differences between these two products.

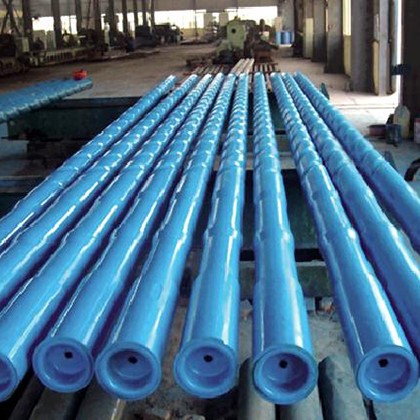

Drill Collars
Drill collars are located at the bottom of the drill string and are a main component of the bottom hole assembly (BHA). Their primary characteristics are their thick walls (generally 38-53mm, which is 4-6 times thicker than the walls of drill pipes), which provide substantial weight and rigidity. To facilitate drilling operations, lifting grooves and slip grooves can be machined onto the outer surface of the drill collar’s internal threads.

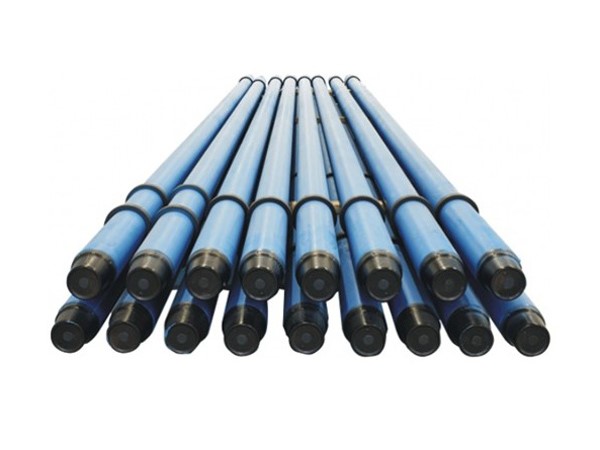

Drill Pipes
Drill pipes are steel pipes with threaded ends, used to connect the surface equipment of the drilling rig with the drilling equipment or bottom hole assembly at the bottom of the well. The purpose of drill pipes is to transport drilling mud to the drill bit and to work with the drill bit to raise, lower, or rotate the bottom hole assembly. Drill pipes must withstand enormous internal and external pressures, torsion, bending, and vibration. During oil and gas extraction and refining, drill pipes can be reused multiple times. Drill pipes are categorized into square drill pipes, regular drill pipes, and heavyweight drill pipes.
Different Roles in Oil and Gas Extraction
These two tools serve different purposes in oil and gas extraction. Drill collars are thick-walled steel pipes primarily used to add weight to the drill string, providing greater drill pressure and preventing well deviation. Drill pipes, on the other hand, are thin-walled steel pipes primarily used to transmit torque and drilling fluid to enable the rotation and drilling of the drill bit.
In summary, drill collars, with their substantial weight and rigidity, provide additional weight and stability to the drill string, while drill pipes are responsible for transmitting mechanical power and transporting drilling mud. These two tools work together to ensure the smooth operation of drilling activities.
