Eccentric shaft

Eccentric shaft: A mechanical part, usually used for the transmission of rotational motion, whose axis is not in the central position but offset from the center. They are pivotal components in the mechanical industry, distinguished by their off-center design which allows them to convert rotary motion into linear motion. This unique characteristic makes them indispensable in various machinery and equipment. This article delves into the materials, types, production process, usage, and widespread applications of them.

Materials

The choice of material for manufacturing shafts is crucial, as it directly affects their performance and durability. Common materials include:

1. Carbon Steel: Widely used due to its balance of strength and affordability. It offers good machinability and is suitable for general-purpose applications.
2. Alloy Steel: Incorporates elements such as chromium, nickel, and molybdenum to enhance strength, toughness, and resistance to wear and fatigue. Ideal for high-stress environments.
3. Stainless Steel: Known for its corrosion resistance, it is used in applications where exposure to moisture and chemicals is a concern. It also provides good mechanical properties.
4. Cast Iron: Used in applications requiring good damping properties to reduce vibration. However, it is less common for high-stress applications due to its brittleness.
5. Aluminum Alloys: Chosen for applications requiring lightweight components without sacrificing strength. They also offer good corrosion resistance.

Types

It can be classified based on their design and application:

1. Single-Eccentric Shafts: Have a single offset section. They are simpler in design and used in applications with straightforward motion conversion requirements.
2. Double-Eccentric Shafts: Feature two offset sections, providing more complex motion patterns and increased flexibility in mechanical design.
3. Multiple-Eccentric Shafts: Incorporate multiple offset sections, allowing for highly specialized motion profiles in advanced machinery.

Production Process

The manufacturing of shafts involves several steps, each critical to ensuring the final product meets stringent performance standards:

1. Material Selection and Preparation: Based on the application requirements, the appropriate material is selected and cut to the desired length.
2. Forging: The selected material is heated and shaped under high pressure to form the basic shape of the shaft. This process improves the material’s grain structure, enhancing strength and durability.
3. Machining: Precision machining operations, including turning, milling, and grinding, are performed to achieve the required dimensions and surface finish. Computer Numerical Control (CNC) machines are often used for high accuracy.
4. Heat Treatment: The shaft undergoes heat treatment processes such as quenching and tempering to enhance hardness and mechanical properties.
5. Quality Control: Rigorous inspections are conducted, including dimensional checks and non-destructive testing, to ensure the shaft meets design specifications and performance standards.

Usage and Operation

Shafts are integral to the operation of various mechanical systems. Their primary function is to convert rotary motion into linear motion or to create oscillatory movements. They are commonly used in:

1. Rotary Engines: In Wankel engines, eccentric shafts play a crucial role in converting the rotational movement of the rotor into usable engine output.
2. Compressors and Pumps: Eccentric shafts drive pistons in reciprocating compressors and pumps, enabling the compression or movement of fluids.
3. Textile Machinery: Used to create precise oscillatory movements required in weaving and knitting machines.
4. Packaging Equipment: Facilitate complex motion patterns necessary for tasks such as sealing, cutting, and folding.

Applications

Shafts find extensive applications across various industries due to their versatility and reliability:

1. Automotive Industry: Used in engines, particularly in rotary engines, and in various types of pumps and compressors.
2. Manufacturing and Machinery: Integral to the operation of lathes, milling machines, and other industrial machinery requiring precise motion control.
3. Textile Industry: Essential in the operation of looms and knitting machines, enabling the production of complex fabric patterns.
4. Packaging Industry: Employed in machines that require intricate motion sequences for packaging products efficiently.
5. Aerospace: Utilized in specialized equipment where precise motion control is critical.
6. Medical Equipment: Found in devices that require accurate and reliable movement, such as pumps in medical machinery.

In conclusion, eccentric shafts are fundamental components in the mechanical industry, offering unique motion conversion capabilities. Their choice of material, meticulous production process, and versatile applications across various industries underscore their significance. As technology advances, the demand for high-precision, reliable eccentric shafts continue to grow, driving innovation and development in their design and manufacturing processes.

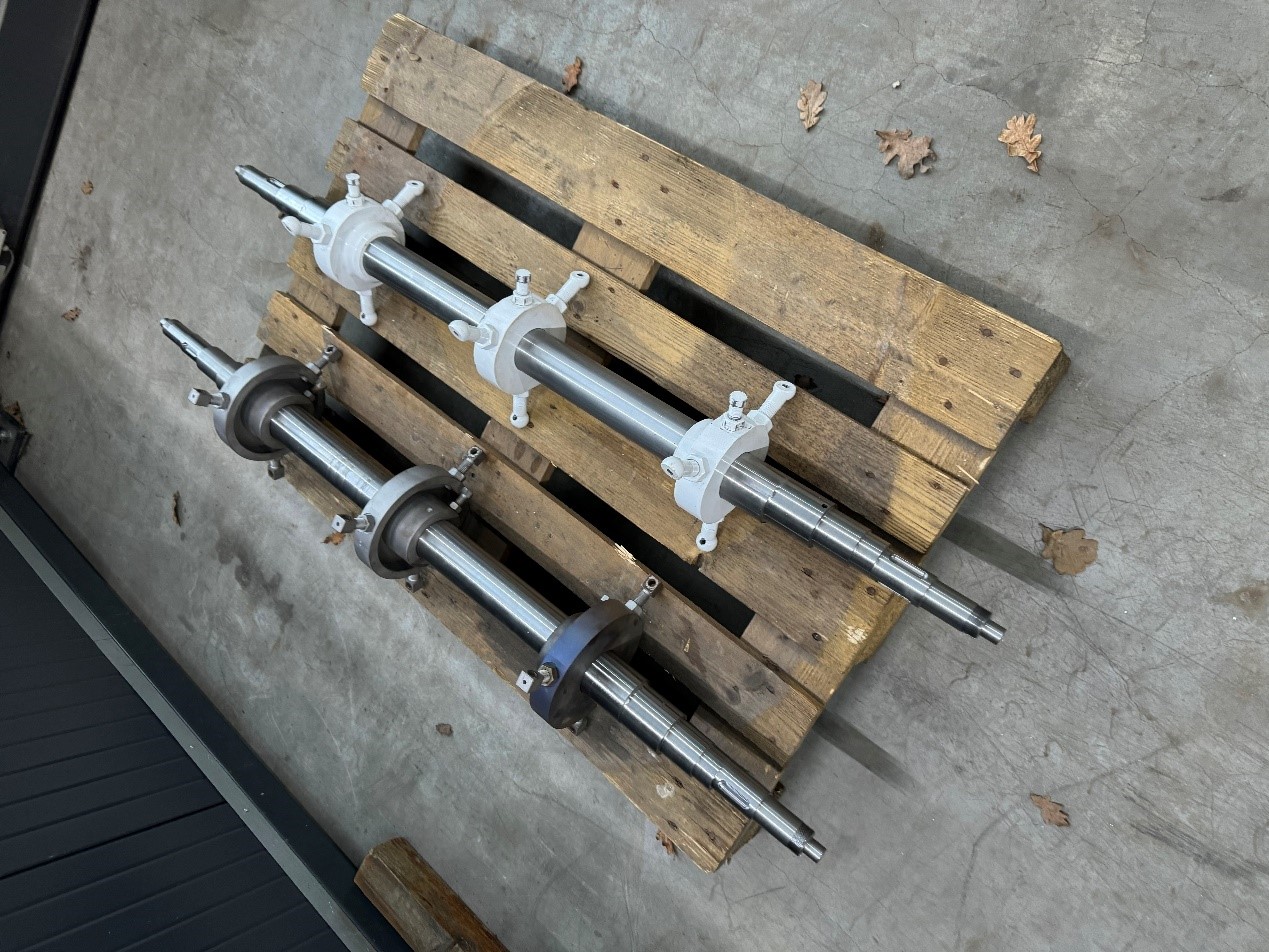

This picture shows the finished products of two shafts. If you want to learn more about our products, please feel free to contact Della Sun at della@welongchina.com or visit our homepage!
